PC BSOD

[masterbill]

ahoj,
potřeboval bych poradit... PC občas umře do modré smrti, tak jsem zkusil pustit "verifier"

PC s verifier vůbec nenaskočil a bylo potřeba využít po bod obnovení.

Posílám odkaz na leteckou poštu
aktuální dump: http://leteckaposta.cz/431096272
starší dumpy: http://leteckaposta.cz/210660103
Koukal jsem na to a ten program na usb klíčenku potřebuji, abych se mohl přihlašovat při práci SafeNet Authentication Client 8.0 SP1 (8.0.161.0)

díky za pomoc


CPU E8400
Memory 2GB
GPU G41
MotherBoard DG41AN

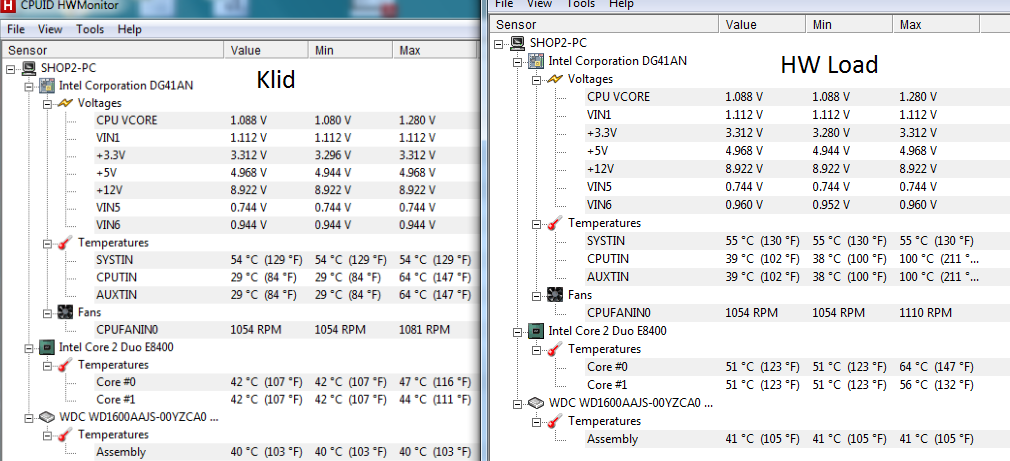

Popis obrázek
klid - v klidném režimu
po HW load - proveden zátěžový test před 10 minutou pád - BSOD http://leteckaposta.cz/361049648

protokol systemu: http://leteckaposta.cz/855626639

//v sekci Problémy s HW bys čekal dost dlouho, možná marně

//přesunuto

//mmmartin

--- Doplnění předchozího příspěvku (Ned Dub 27, 2014 12:44 pm) ---

----------------------------------------------------------------------------
CrystalDiskInfo 6.1.9 (C) 2008-2014 hiyohiyo
Crystal Dew World : http://crystalmark.info/
----------------------------------------------------------------------------

OS : Windows 7 Professional SP1 [6.1 Build 7601] (x86)
Date : 2014/04/27 12:44:13

-- Controller Map ----------------------------------------------------------
+ Intel(R) N10/ICH7 Family Serial ATA Storage Controller - 27C0 [ATA]
- ATA Channel 0 (0)
+ ATA Channel 1 (1)
- TEAC DV-W28S-V ATA Device
+ Intel(R) ICH7 Family Ultra ATA Storage Controllers - 27DF [ATA]
+ ATA Channel 0 (0)
- WDC WD1600AAJS-00YZCA0 ATA Device

-- Disk List ---------------------------------------------------------------
(1) WDC WD1600AAJS-00YZCA0 : 160,0 GB [0/1/0, pd1] - wd

----------------------------------------------------------------------------
(1) WDC WD1600AAJS-00YZCA0
----------------------------------------------------------------------------
Model : WDC WD1600AAJS-00YZCA0
Firmware : 01.03B01
Serial Number : WD-WCAYU9688237
Disk Size : 160,0 GB (8,4/137,4/160,0/160,0)
Buffer Size : 8192 KB
Queue Depth : 32
# of Sectors : 312581808
Rotation Rate : Neznámy údaj
Interface : Serial ATA
Major Version : ATA8-ACS
Minor Version : ----
Transfer Mode : ---- | SATA/300
Power On Hours : 10927 hod.
Power On Count : 819 krát
Temperature : 41 C (105 F)
Health Status : Dobrý
Features : S.M.A.R.T., AAM, 48bit LBA, NCQ
APM Level : ----
AAM Level : 8080h [ON]

-- S.M.A.R.T. --------------------------------------------------------------
ID Cur Wor Thr RawValues(6) Attribute Name
01 200 200 _51 000000000000 Počet chyb čtení
03 143 140 _21 000000000EF1 Čas na roztočení ploten
04 _99 _99 __0 0000000004DD Počet spuštění/zastavení
05 200 200 140 000000000000 Počet přemapovaných sektorů
07 200 200 __0 000000000000 Počet chybných hledání
09 _86 _86 __0 000000002AAF Hodin v činnosti
0A 100 100 __0 000000000000 Počet opakovaných pokusů o roztočení ploten
0B 100 100 __0 000000000000 Počet pokusů o překalibrování
0C 100 100 __0 000000000333 Počet cyklů zapnutí zařízení
C0 200 200 __0 000000000081 Počet vypnutí disku
C1 200 200 __0 00000000045B Počet cyklů načítání/vymazání
C2 102 _86 __0 000000000029 Teplota
C4 200 200 __0 000000000000 Počet udalostí s číslem realokování sektorů
C5 200 200 __0 000000000000 Počet podezřelých sektorů
C6 200 200 __0 000000000000 Počet neopravitelných sektorů
C7 200 200 __0 000000000000 Počet chyb v kontrolním součtu UltraDMA
C8 200 200 __0 000000000000 Počet chyb při zápisu sektorů

-- IDENTIFY_DEVICE ---------------------------------------------------------
0 1 2 3 4 5 6 7 8 9
000: 427A 3FFF C837 0010 0000 0000 003F 0000 0000 0000
010: 2020 2020 2057 442D 5743 4159 5539 3638 3832 3337
020: 0000 4000 0032 3031 2E30 3342 3031 5744 4320 5744
030: 3136 3030 4141 4A53 2D30 3059 5A43 4130 2020 2020
040: 2020 2020 2020 2020 2020 2020 2020 8010 0000 2F00
050: 4001 0000 0000 0007 3FFF 0010 003F FC10 00FB 0110
060: FFFF 0FFF 0000 0007 0003 0078 0078 0078 0078 0000
070: 0000 0000 0000 0000 0000 001F 1706 0000 0044 0040
080: 01FE 0000 746B 7F61 4123 7469 BE41 4123 207F 000F
090: 000F 0000 FFFE 0000 8080 0000 0000 0000 0000 0000
100: 9EB0 12A1 0000 0000 0000 0000 0000 0000 5001 4EE1
110: AE39 6EC8 0000 0000 0000 0000 0000 0000 0000 4018
120: 4018 0000 0000 0000 0000 0000 0000 0000 0029 0000
130: 0000 0000 0000 16FE 0125 0000 0000 0000 0000 0000
140: 0000 0000 0004 0000 0000 0000 0000 0000 0000 0000
150: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000
160: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000
170: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000
180: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000
190: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000
200: 0000 0000 0000 0000 0000 0000 3037 0000 0000 0000
210: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000
220: 0000 0000 101E 0000 0000 0000 0000 0000 0000 0000
230: 0000 0000 0000 0000 0001 1000 0000 0000 0000 0000
240: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000
250: 0000 0000 0000 0000 0000 14A5

-- SMART_READ_DATA ---------------------------------------------------------
+0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +A +B +C +D +E +F
000: 10 00 01 2F 00 C8 C8 00 00 00 00 00 00 00 03 27
010: 00 8F 8C F1 0E 00 00 00 00 00 04 32 00 63 63 DD
020: 04 00 00 00 00 00 05 33 00 C8 C8 00 00 00 00 00
030: 00 00 07 2E 00 C8 C8 00 00 00 00 00 00 00 09 32
040: 00 56 56 AF 2A 00 00 00 00 00 0A 32 00 64 64 00
050: 00 00 00 00 00 00 0B 32 00 64 64 00 00 00 00 00
060: 00 00 0C 32 00 64 64 33 03 00 00 00 00 00 C0 32
070: 00 C8 C8 81 00 00 00 00 00 00 C1 32 00 C8 C8 5B
080: 04 00 00 00 00 00 C2 22 00 66 56 29 00 00 00 00
090: 00 00 C4 32 00 C8 C8 00 00 00 00 00 00 00 C5 32
0A0: 00 C8 C8 00 00 00 00 00 00 00 C6 30 00 C8 C8 00
0B0: 00 00 00 00 00 00 C7 32 00 C8 C8 00 00 00 00 00
0C0: 00 00 C8 08 00 C8 C8 00 00 00 00 00 00 00 00 00
0D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
0F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
100: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
110: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
120: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
130: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
140: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
150: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
160: 00 00 00 00 00 00 00 00 00 00 84 00 B8 0B 01 7B
170: 03 00 01 00 02 27 05 00 00 00 00 00 00 00 00 00
180: 00 00 01 01 00 00 00 00 00 00 00 00 00 00 00 00
190: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
1A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
1B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
1C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
1D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
1E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
1F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 5C

-- SMART_READ_THRESHOLD ----------------------------------------------------
+0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +A +B +C +D +E +F
000: 10 00 01 33 C8 00 00 00 00 00 00 00 00 00 03 15
010: 00 00 00 00 00 00 00 00 00 00 04 00 00 00 00 00
020: 00 00 00 00 00 00 05 8C 00 00 00 00 00 00 00 00
030: 00 00 07 00 C8 00 00 00 00 00 00 00 00 00 09 00
040: 00 00 00 00 00 00 00 00 00 00 0A 00 00 00 00 00
050: 00 00 00 00 00 00 0B 00 00 00 00 00 00 00 00 00
060: 00 00 0C 00 00 00 00 00 00 00 00 00 00 00 C0 00
070: 00 00 00 00 00 00 00 00 00 00 C1 00 00 00 00 00
080: 00 00 00 00 00 00 C2 00 00 00 00 00 00 00 00 00
090: 00 00 C4 00 00 00 00 00 00 00 00 00 00 00 C5 00
0A0: 00 00 00 00 00 00 00 00 00 00 C6 00 00 00 00 00
0B0: 00 00 00 00 00 00 C7 00 00 00 00 00 00 00 00 00
0C0: 00 00 C8 00 C8 00 00 00 00 00 00 00 00 00 00 00
0D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
0F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
100: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
110: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
120: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
130: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
140: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
150: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
160: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
170: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
180: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
190: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
1A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
1B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
1C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
1D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
1E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
1F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 65

[Reklama]

[MiliNess]

Veririfer můžeš klidně vypnout, ve tvém případě ho není třeba. Zachycuje pouze menší problém při předávání IRP mezi ovladači, pravděpodobně je to důsledek chybky v ovladači ikeyenum.sys.
Není to nic kritického a rozhodně ti neshazuje systém. Pravým důvodem je chyba v grafickém subsystému. Při restartu GPU a grafického ovladače,
kvůli detekovaným timeoutům při provádění grafických operací, dochází k zavěšení vlákna v rutině grafického ovladače. Systém je následně zastaven a zobrazena BSOD.
Zřejmě to bude vada integrovaného VGA v chipsetu. Pokud ano, není to nic strašného, stačí tam hodit nějaký starší PCIe VGA uza pár stovek a mělo by to běžet dále.
Nejprve ale zkus updatnout grafický ovladač tímto.
