Rozbitá součástka?

[matyasmelc]

Zdravím všechny, přijmu jakoukoli pomoc. Hrál jsem na pc jako každý jiný den a při hře najednou zčernala obrazovka. (Ještě byly akorát slyšet nějaké zaseklé zvuky hry)

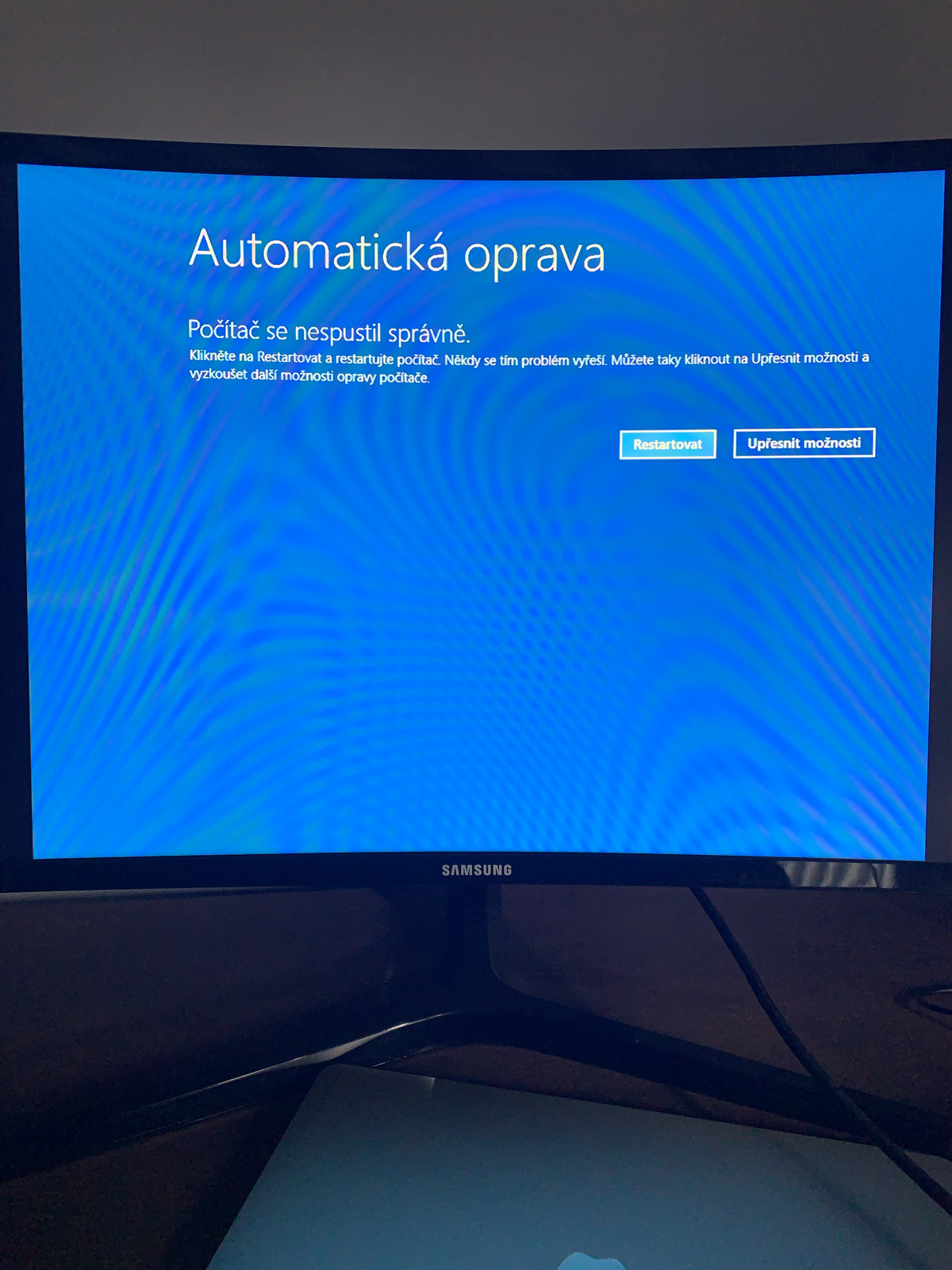

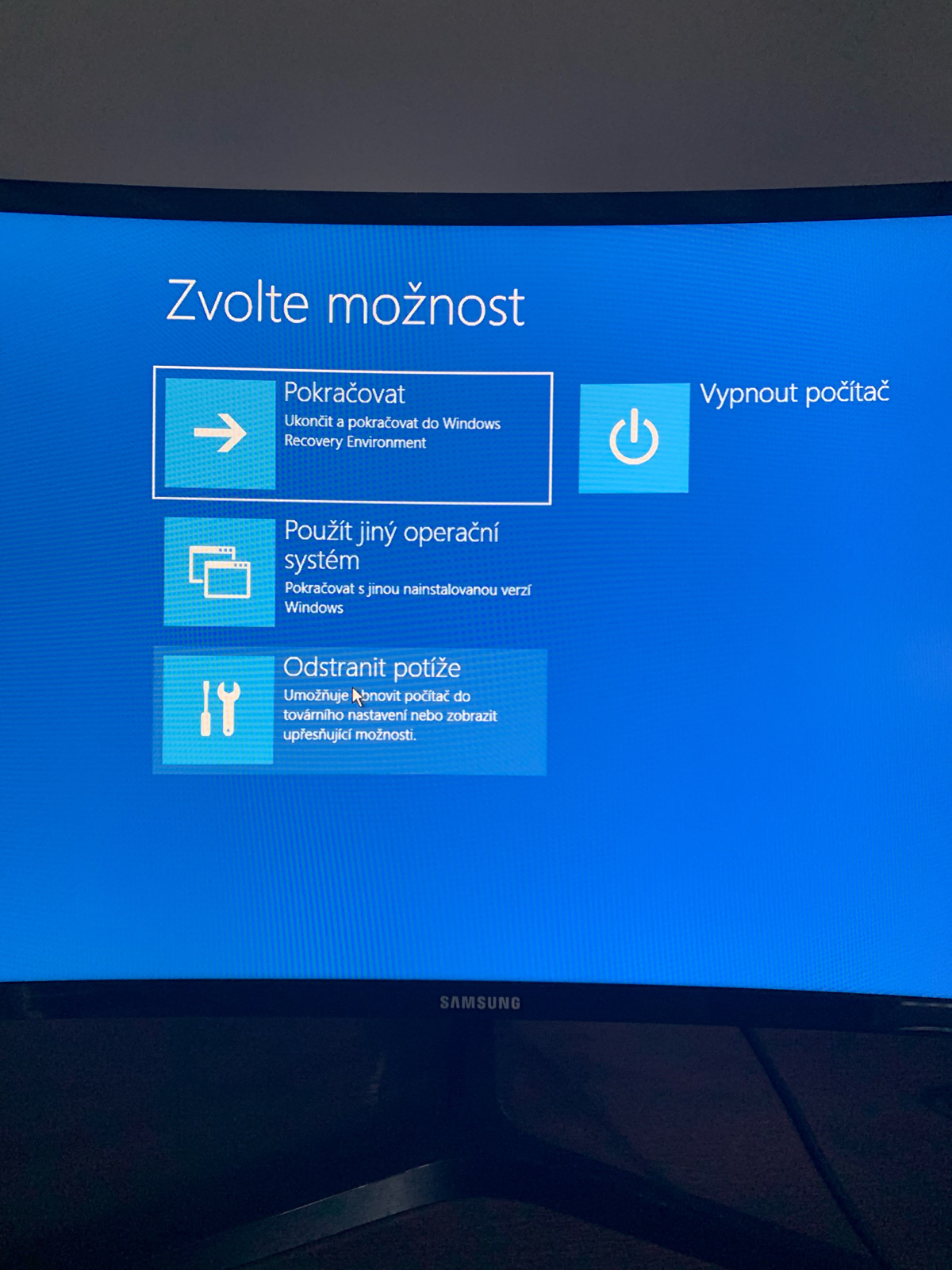

Počítač nereagoval, tak jsem ho tedy ručně vypnul a od té doby nejde zapnout, respektive dostanu se jen do modrého menu automatické opravy, ale do Windows systému už ne. Zkoušel jsem funkci odstranit potíže, dát Windows CD do pc a znovu ho nainstalovat, ale zatím nic nevyšlo.

[Reklama]

[ITCrowd]

Doporučuji vyzkoušet nějakou verzi live linuxu. Pokud ten naskočí a poběží v pořádku, může být závada tak na pevném disku. Pokud se nerozběhne a skončí chybou, pak bude vada někde jinde v HW.

[matyasmelc]

Doporučuji vyzkoušet nějakou verzi live linuxu. Pokud ten naskočí a poběží v pořádku, může být závada tak na pevném disku. Pokud se nerozběhne a skončí chybou, pak bude vada někde jinde v HW.

Zkusil jsem Linux Mint z usb a funguje, mám tu i všechny soubory. Už jen za tohle Vám moc děkuju! Co mám dělat teď, je to na výměnu pevného disku?

[mmmartin]

"pro vaše odpovědi používejte tlačítko „ODPOVĚDĚT“ "

Zdroj: Pravidla fóra, bod 3 e

Dělal jsi to devět let, není důvod ke změně.

A k tvému dotazu: Udělej kontrolu Crystal Disc Info, vygeneruj log a ten sem vlož.

[matyasmelc]

Pardon, v tomhle se moc nevyznám. Crystal Disc Info se mi nepodařilo stáhnout, tak jsem použil GSmartControl. Doufám, že tohle je ten samý log.


smartctl 7.1 2019-12-30 r5022 [x86_64-linux-5.4.0-91-generic] (local build)
Copyright (C) 2002-19, Bruce Allen, Christian Franke, http://www.smartmontools.org

=== START OF INFORMATION SECTION ===
Device Model: SAMSUNG HD502HM
Serial Number: S2PJJ90BA12903
LU WWN Device Id: 5 0024e9 206514d3d
Add. Product Id: DELL(tm)
Firmware Version: 1AJ10201
User Capacity: 500,107,862,016 bytes [500 GB]
Sector Size: 512 bytes logical/physical
Rotation Rate: 7200 rpm
Form Factor: 3.5 inches
Device is: Not in smartctl database [for details use: -P showall]
ATA Version is: ATA8-ACS T13/1699-D revision 6
SATA Version is: SATA 2.6, 6.0 Gb/s
Local Time is: Mon Apr 4 20:33:56 2022 UTC
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM level is: 128 (quiet), recommended: 254
APM level is: 254 (maximum performance)
Rd look-ahead is: Enabled
Write cache is: Enabled
DSN feature is: Unavailable
ATA Security is: Disabled, frozen [SEC2]

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status: (0x80) Offline data collection activity
was never started.
Auto Offline Data Collection: Enabled.
Self-test execution status: ( 0) The previous self-test routine completed
without error or no self-test has ever
been run.
Total time to complete Offline
data collection: ( 4620) seconds.
Offline data collection
capabilities: (0x5b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
No Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 2) minutes.
Extended self-test routine
recommended polling time: ( 77) minutes.
SCT capabilities: (0x003f) SCT Status supported.
SCT Error Recovery Control supported.
SCT Feature Control supported.
SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAGS VALUE WORST THRESH FAIL RAW_VALUE
1 Raw_Read_Error_Rate POSR-K 100 100 051 - 12
2 Throughput_Performance -OS--K 056 056 000 - 4238
3 Spin_Up_Time PO---K 082 081 025 - 5489
4 Start_Stop_Count -O--CK 097 097 000 - 3891
5 Reallocated_Sector_Ct PO--CK 252 252 010 - 0
7 Seek_Error_Rate -OSR-K 252 252 051 - 0
8 Seek_Time_Performance --S--K 252 252 015 - 0
9 Power_On_Hours -O--CK 100 100 000 - 36380
10 Spin_Retry_Count -O--CK 252 252 051 - 0
11 Calibration_Retry_Count -O--CK 252 252 000 - 0
12 Power_Cycle_Count -O--CK 097 097 000 - 3855
13 Read_Soft_Error_Rate -O-RCK 100 100 000 - 0
191 G-Sense_Error_Rate -O---K 100 100 000 - 94
192 Power-Off_Retract_Count -O---K 252 252 000 - 0
193 Load_Cycle_Count -O--CK 100 100 000 - 3900
194 Temperature_Celsius -O---- 064 052 000 - 32 (Min/Max 10/48)
195 Hardware_ECC_Recovered -O-RCK 100 100 000 - 0
196 Reallocated_Event_Count -O--CK 252 252 000 - 0
197 Current_Pending_Sector -O--CK 252 252 000 - 0
198 Offline_Uncorrectable ----CK 252 252 000 - 0
199 UDMA_CRC_Error_Count -OS-CK 200 200 000 - 0
200 Multi_Zone_Error_Rate -O-R-K 100 100 000 - 31
240 Head_Flying_Hours -O--CK 100 100 000 - 36380
241 Total_LBAs_Written -O--CK 096 088 000 - 6507134
242 Total_LBAs_Read -O--CK 094 088 000 - 9335383
254 Free_Fall_Sensor -O--CK 100 100 000 - 1
||||||_ K auto-keep
|||||__ C event count
||||___ R error rate
|||____ S speed/performance
||_____ O updated online
|______ P prefailure warning

General Purpose Log Directory Version 1
SMART Log Directory Version 1 [multi-sector log support]
Address Access R/W Size Description
0x00 GPL,SL R/O 1 Log Directory
0x01 SL R/O 1 Summary SMART error log
0x02 SL R/O 2 Comprehensive SMART error log
0x03 GPL R/O 2 Ext. Comprehensive SMART error log
0x06 SL R/O 1 SMART self-test log
0x07 GPL R/O 2 Extended self-test log
0x08 GPL R/O 2 Power Conditions log
0x09 SL R/W 1 Selective self-test log
0x10 GPL R/O 1 NCQ Command Error log
0x11 GPL R/O 1 SATA Phy Event Counters log
0x80-0x9f GPL,SL R/W 16 Host vendor specific log
0xe0 GPL,SL R/W 1 SCT Command/Status
0xe1 GPL,SL R/W 1 SCT Data Transfer

SMART Extended Comprehensive Error Log Version: 1 (2 sectors)
No Errors Logged

SMART Extended Self-test Log Version: 1 (2 sectors)
Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error
# 1 Extended offline Completed without error 00% 36379 -
# 2 Extended offline Completed without error 00% 36378 -
# 3 Short offline Completed without error 00% 1 -

SMART Selective self-test log data structure revision number 0
Note: revision number not 1 implies that no selective self-test has ever been run
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Completed [00% left] (0-65535)
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

SCT Status Version: 2
SCT Version (vendor specific): 256 (0x0100)
Device State: Active (0)
Current Temperature: 32 Celsius
Power Cycle Min/Max Temperature: 32/37 Celsius
Lifetime Min/Max Temperature: 14/82 Celsius
Specified Max Operating Temperature: 80 Celsius
Under/Over Temperature Limit Count: 0/6

SCT Temperature History Version: 2
Temperature Sampling Period: 5 minutes
Temperature Logging Interval: 5 minutes
Min/Max recommended Temperature: -5/80 Celsius
Min/Max Temperature Limit: -10/85 Celsius
Temperature History Size (Index): 128 (62)

Index Estimated Time Temperature Celsius
63 2022-04-04 09:55 33 **************
64 2022-04-04 10:00 32 *************
... ..( 11 skipped). .. *************
76 2022-04-04 11:00 32 *************
77 2022-04-04 11:05 33 **************
... ..( 4 skipped). .. **************
82 2022-04-04 11:30 33 **************
83 2022-04-04 11:35 32 *************
... ..( 2 skipped). .. *************
86 2022-04-04 11:50 32 *************
87 2022-04-04 11:55 33 **************
88 2022-04-04 12:00 32 *************
... ..( 3 skipped). .. *************
92 2022-04-04 12:20 32 *************
93 2022-04-04 12:25 33 **************
94 2022-04-04 12:30 32 *************
... ..( 6 skipped). .. *************
101 2022-04-04 13:05 32 *************
102 2022-04-04 13:10 22 ***
103 2022-04-04 13:15 25 ******
104 2022-04-04 13:20 28 *********
105 2022-04-04 13:25 30 ***********
106 2022-04-04 13:30 32 *************
107 2022-04-04 13:35 33 **************
108 2022-04-04 13:40 35 ****************
109 2022-04-04 13:45 35 ****************
110 2022-04-04 13:50 36 *****************
111 2022-04-04 13:55 37 ******************
112 2022-04-04 14:00 37 ******************
113 2022-04-04 14:05 36 *****************
114 2022-04-04 14:10 36 *****************
115 2022-04-04 14:15 36 *****************
116 2022-04-04 14:20 35 ****************
117 2022-04-04 14:25 34 ***************
118 2022-04-04 14:30 33 **************
119 2022-04-04 14:35 33 **************
120 2022-04-04 14:40 33 **************
121 2022-04-04 14:45 32 *************
... ..( 7 skipped). .. *************
1 2022-04-04 15:25 32 *************
2 2022-04-04 15:30 31 ************
3 2022-04-04 15:35 31 ************
4 2022-04-04 15:40 23 ****
5 2022-04-04 15:45 25 ******
6 2022-04-04 15:50 28 *********
7 2022-04-04 15:55 28 *********
8 2022-04-04 16:00 29 **********
9 2022-04-04 16:05 30 ***********
10 2022-04-04 16:10 30 ***********
11 2022-04-04 16:15 31 ************
... ..( 3 skipped). .. ************
15 2022-04-04 16:35 31 ************
16 2022-04-04 16:40 20 *
17 2022-04-04 16:45 22 ***
18 2022-04-04 16:50 24 *****
19 2022-04-04 16:55 26 *******
20 2022-04-04 17:00 27 ********
21 2022-04-04 17:05 28 *********
22 2022-04-04 17:10 21 **
23 2022-04-04 17:15 23 ****
24 2022-04-04 17:20 25 ******
25 2022-04-04 17:25 26 *******
26 2022-04-04 17:30 27 ********
27 2022-04-04 17:35 28 *********
28 2022-04-04 17:40 29 **********
29 2022-04-04 17:45 29 **********
30 2022-04-04 17:50 30 ***********
31 2022-04-04 17:55 30 ***********
32 2022-04-04 18:00 31 ************
33 2022-04-04 18:05 31 ************
34 2022-04-04 18:10 32 *************
35 2022-04-04 18:15 34 ***************
36 2022-04-04 18:20 35 ****************
37 2022-04-04 18:25 35 ****************
38 2022-04-04 18:30 36 *****************
... ..( 7 skipped). .. *****************
46 2022-04-04 19:10 36 *****************
47 2022-04-04 19:15 37 ******************
48 2022-04-04 19:20 37 ******************
49 2022-04-04 19:25 37 ******************
50 2022-04-04 19:30 36 *****************
... ..( 3 skipped). .. *****************
54 2022-04-04 19:50 36 *****************
55 2022-04-04 19:55 35 ****************
56 2022-04-04 20:00 34 ***************
57 2022-04-04 20:05 33 **************
58 2022-04-04 20:10 33 **************
59 2022-04-04 20:15 32 *************
... ..( 2 skipped). .. *************
62 2022-04-04 20:30 32 *************

SCT Error Recovery Control:
Read: Disabled
Write: Disabled

Device Statistics (GP/SMART Log 0x04) not supported

SATA Phy Event Counters (GP Log 0x11)
ID Size Value Description
0x0001 4 0 Command failed due to ICRC error
0x0002 4 0 R_ERR response for data FIS
0x0003 4 0 R_ERR response for device-to-host data FIS
0x0004 4 0 R_ERR response for host-to-device data FIS
0x0005 4 0 R_ERR response for non-data FIS
0x0006 4 0 R_ERR response for device-to-host non-data FIS
0x0007 4 0 R_ERR response for host-to-device non-data FIS
0x0008 4 0 Device-to-host non-data FIS retries
0x0009 4 2 Transition from drive PhyRdy to drive PhyNRdy
0x000a 4 1 Device-to-host register FISes sent due to a COMRESET
0x000b 4 0 CRC errors within host-to-device FIS
0x000d 4 0 Non-CRC errors within host-to-device FIS
0x000f 4 0 R_ERR response for host-to-device data FIS, CRC
0x0010 4 0 R_ERR response for host-to-device data FIS, non-CRC
0x0012 4 0 R_ERR response for host-to-device non-data FIS, CRC
0x0013 4 0 R_ERR response for host-to-device non-data FIS, non-CRC
0x8e00 4 0 Vendor specific
0x8e01 4 0 Vendor specific
0x8e02 4 0 Vendor specific
0x8e03 4 0 Vendor specific
0x8e04 4 0 Vendor specific
0x8e05 4 0 Vendor specific
0x8e06 4 0 Vendor specific
0x8e07 4 0 Vendor specific
0x8e08 4 0 Vendor specific
0x8e09 4 0 Vendor specific
0x8e0a 4 0 Vendor specific
0x8e0b 4 0 Vendor specific
0x8e0c 4 0 Vendor specific
0x8e0d 4 0 Vendor specific
0x8e0e 4 0 Vendor specific
0x8e0f 4 0 Vendor specific
0x8e10 4 0 Vendor specific
0x8e11 4 0 Vendor specific

[petr22]

Podle popisu by to mohla byt vadna graficka karta.

Cop je to za kartu> Chtelo by to vyzkouset jinou, treba i iGPU pokud je v procesoru.

[matyasmelc]

Najel jsem do info systému a jako grafickou kartu tady mám jen tohle:


Graphics: Device-1: Intel 2nd Generation Core Processor Family Integrated Graphics vendor: Dell
driver: i915 v: kernel bus ID: 00:02.0 chip ID: 8086:0102
Display: x11 server: X.Org 1.20.11 driver: modesetting unloaded: fbdev,vesa
resolution: 1920x1080~60Hz
OpenGL: renderer: Mesa DRI Intel HD Graphics 2000 (SNB GT1) v: 3.3 Mesa 21.0.3
compat-v: 3.0 direct render: Yes

[petr22]

To je pocitac z roku 2011 ?

Lepsi bude se podivat primo dovnitr to tam je za kartu.

[matyasmelc]

Rok by zhruba odpovídal. Grafická karta je Sapphire HD 6670 Ultimate 1GB GDDR5.
Když jsem otevřel bednu, tak jsem si ještě všimnul červeně svítícího světýlka na základní desce, také nevím co to znamená.

[petr22]

Vytahni ten Radeon z pocitace.

A zkus Windows jen s iGPU.

Naprosta vetsina karet jako je ten Radeon umrela uz davno, ta karta je stara 11 let a nektere nevydrzely ani 3-4 roky.

Pripadne ten Radeon zkus v jinem PC, nicmene ja bych hadal ze je vadna, koneckoncu vydrzela nekolikanasobek
zivotnosti podobnych karet.

[matyasmelc]

Grafiku jsem vyndal, ale do Windows se mi dostat nepodařilo, jedině znovu do Linuxu z usb. Mám doma ještě jednu grafickou kartu ze skoro identického pc, která ještě funguje, ale pořád tam je to červené světlo na desce. Nemůže to být i tím?

[zeus]

Svetylko na desce bude popsano v manualu, bud uzivatelskem nebo servisnim.
Ale kdyz ti bezi system z flesky a SMART disku je cisty, je problem 'jen' s Win. Oprava se proste ne vzdy podari.
